• High measurement accuracy of Class 0.2S for Active Energy
• Voltage: phase, line and system values
• Current: phase values (neutral current calculated)
• Power: apparent, active and reactive phase and total values Power Factor per phase and total Frequency of measured voltage value
• High-Low-Average value functions for all measurements
• Maximum demand of power and current values
• Voltage and Current asymmetry
• Total Harmonic Distortion (THD): Voltage and Current
• Display of voltage, current harmonics up to the 15th order
• Energy meters for active, reactive, apparent partial and total values, per phase and system values
• Hour counter for programmable total and partial hours
• Phase active power unbalance
• Easy and intuitive menu navigation
• LCD display
• Expandability with expansion modules
• Wide range of power supply, measurements and temperature
• Suitable for LV, MV and HV electric systems and installations

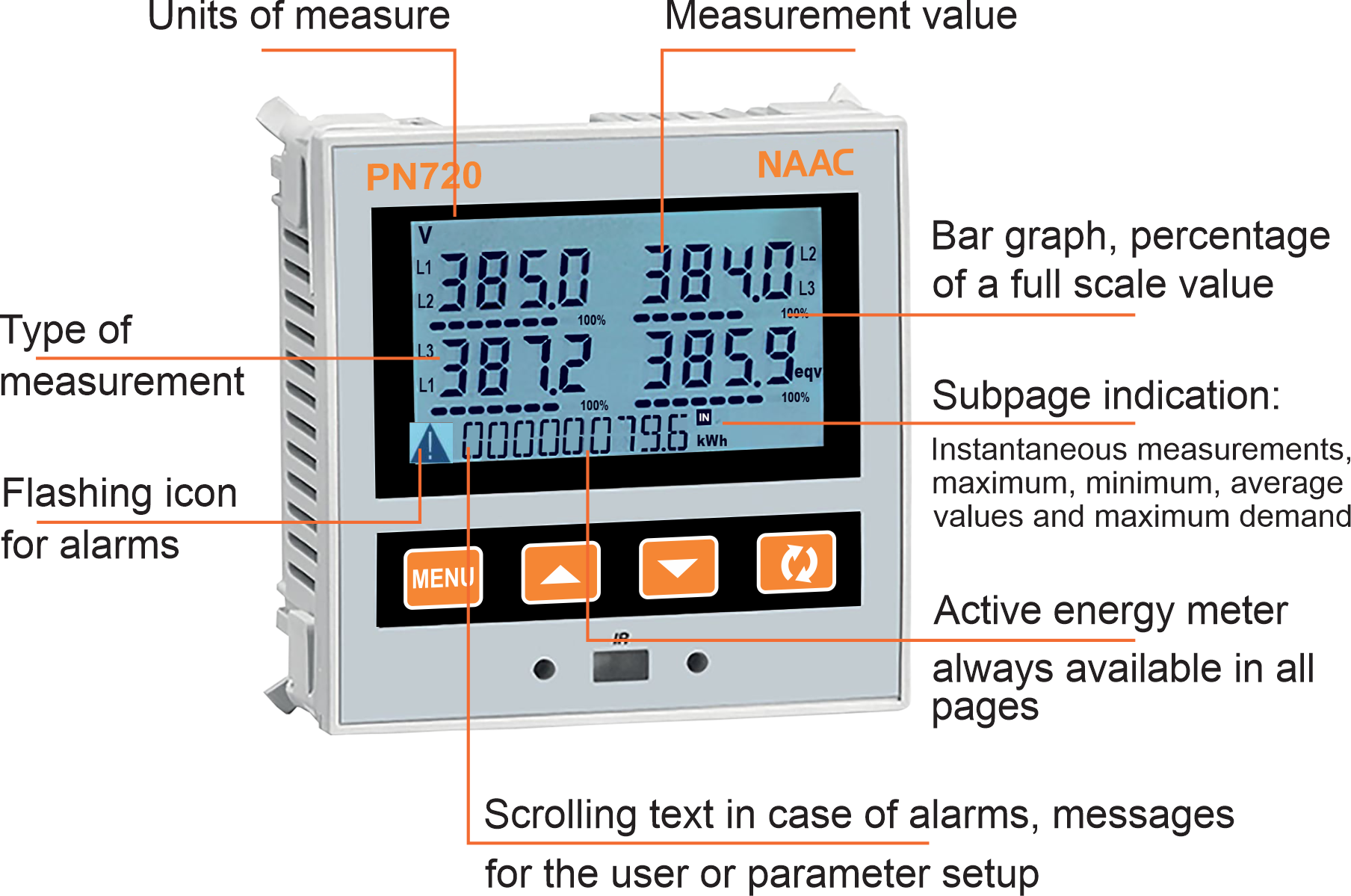

New icon type display, with white backlight to ensure good visibility in environments with low light conditions. Scrolling text with 4 characters to show :

• Alarm messages configured by the user
• Help messages for the user
• Description of the setup menu and parameters. The text is available in 5 languages (English, Italian, French, Spanish and Portuguese)

Through the optical port, direct connection to a PC USB Optical Module or via WiFi dongle module is allowed. Wifi dongle can furthermore make :

• Copy of the parameters
  All parameters in the Analyzer can be saved in the Wifi Dongle memory and in case reloaded on the same device (backup function) or on a different one of the same type (replication of the configuration)
• Clone of the device settings
  In addition to the copy of the parameters, the current values of the energy meters and hour counters can be saved in memory as well, in order to fully replicate a Analzyer on another device of the same type or to restore the Analyzer to a previously saved state.
