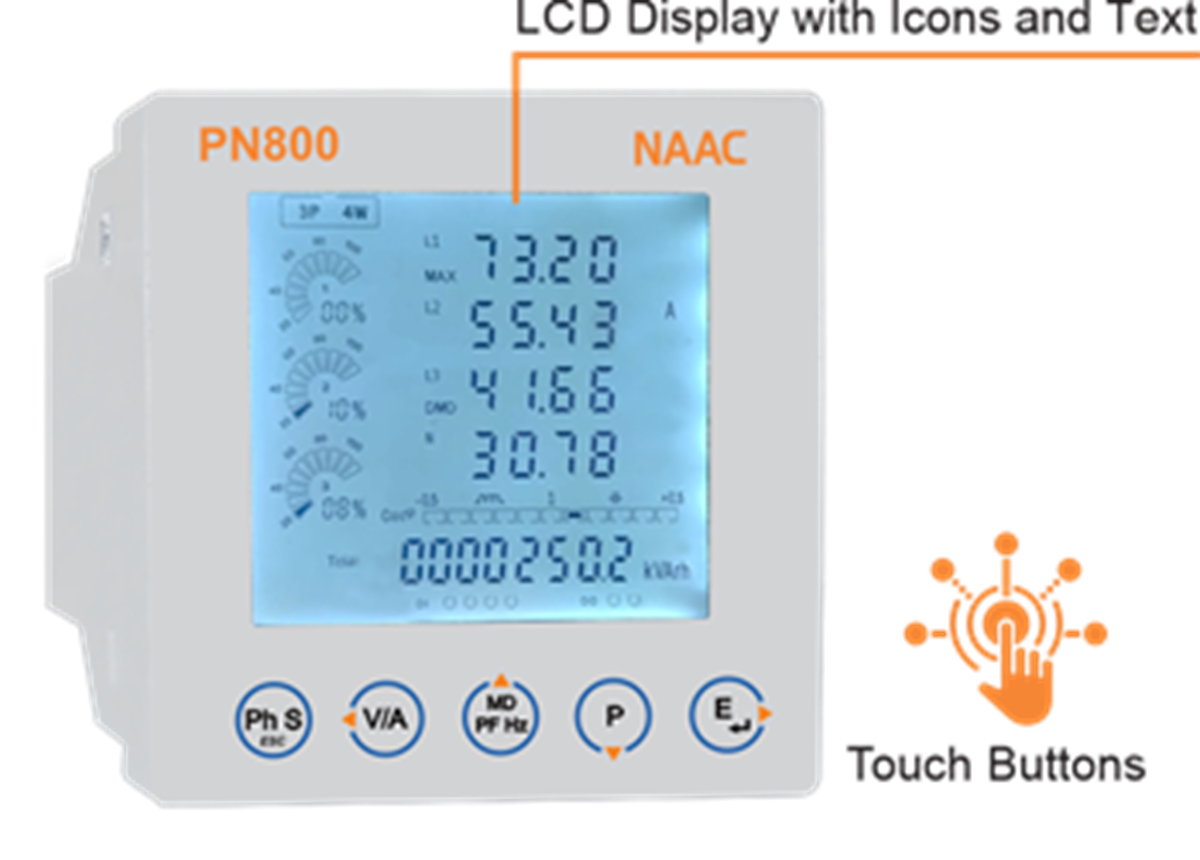

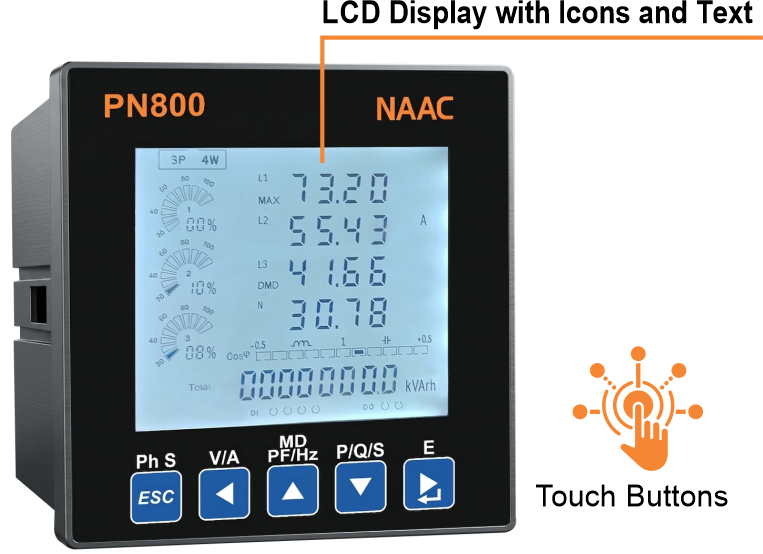

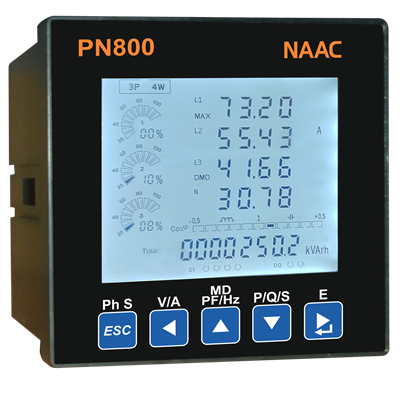

PN800 Energy Meter
The Series PN800 Multi Function Digital Power Analyzer designed for Energy Metering and Power Monitoring in electrical distribution systems. It’s a key component for improving energy efficiency and understanding electrical network characteristics.
It measures and displays a wide range of electrical parameters for single-phase and three-phase networks, including voltage, current, power (active, reactive, apparent), energy (kWh), power factor, and frequency.
It complies with IEC 62053-22 Class 0.5s for active energy, ensuring precise measurements. Large backlit LCD display provides clear and direct readings of multiple measurement and metering values, making it easy to use. RS485 Modbus communication enables remote monitoring and integration into building management systems (BMS) or SCADA systems.
PN800 includes digital inputs for reading pulses from other devices (e.g., water or gas meters) and digital outputs for control / command or alarm signaling. THD (Total Harmonic Distortion) calculation measures voltage and current harmonics up to the 63rd order, which is crucial for power quality analysis.
Features of PN800 Energy Meter
The main features include an extended power supply voltage range (100…440V AC), (120-250V DC) high measurement accuracy (±0.2% for voltage and current), expandability (using expansion modules) and LCD interactive interface for simple use.
Main measurements and functions
- Flush-mount LCD Power Analyzer, 96x96x60.8 mm
- Maximum demand management with RTC
- Bi-Directional Metering
- 5 Touch Button operation
- High accuracy measuring of Active Energy : CL 0.5S
- LCD with White Backlit
- Harmonic Analysis – upto the 63rd order Harmonic
- Measured Electrical Parameters 577
- Phase Angle Display
- Auxiliary Supply 85V DC / 265V AC
- RS485 Modbus Communication
- Voltage and Current Unbalance
- CT and PT Programmable
- Programmable CT Secondary : /1A and /5A
- Intelligent setting for forward and reverse wiring of CT
- Digital Input / Output / Pulse
- Inputs / Output for control / command or pulse reading
- Setup Password protection available
- Programmable Alarm
- Auto Rotation Setting
- Ethernet Modbus TCP – On Request
Key Features and Capabilities
It accurately measures and displays crucial values for both single-phase and three-phase networks, including:
- Voltage (V): Phase-to-neutral and phase-to-phase
- Current (A): For each phase
- Active Power (kW): Real power consumed
- Reactive Power (kVAR): Power oscillating between source and load
- Apparent Power (kVA): Total power
- Energy (kWh/kVARh): Both active and reactive energy consumption (import and export)
- Power Factor (PF): A crucial indicator of system efficiency
- Frequency (Hz): The standard AC frequency
- High Accuracy: Adhering to IEC 62053-22 Class 0.5s for active energy, it delivers precise and reliable measurements, essential for accurate billing, energy efficiency initiatives, and power quality analysis.
Digital and Smart Capabilities
As a “smart power meter,” it likely incorporates features like data logging, time-sharing power measurement, and demand/extreme value tracking, which are essential for modern energy management.
Characteristics of PN800 Energy Meter
| Technical Parameters | |
| Applicable Networks | 3 Phase 4 Wire, 3 Phase 3 Wire, Single Two-Wire, 3 Phase 3 Wire PT |
| Operating Voltage Power Range | 85V-265V AC / DC |
| Operating Power Wastage | < 5W |
| Input Voltage | |
| Rating | 475V AC |
| Overloaded | 1.2 x Continuous, 2 x (10s) |
| Power Wastage | <0.4 VA / Phase |
| Electrical Impedance | > 200 k Ohm |
| Input Current | |
| Primary Current | 1A – 9999A |
| Secondary Input | 1A or 5A |
| Short Term Over-current | 20x maximum current for 0.5 seconds |
| Power Wastage | <0.2 VA / Phase |
| Electrical Impedance | > 0.1 Ohm |
| Frequency | 45Hz – 65Hz |
| Switching Input | Dry Contact Input, Opto-Isolated |
| Output | |
| Switching Output | Relay Output; any power alarm can be set, default remote control |
| Pulse Output | 1 electrical energy pulse |
| Precision Indicators | |
| Voltage / Current | 0.2% |
| Frequency | 0.2% |
| Power / Power Factor | 1% |
| Active Degree of Electricity | 0.5S Class |
| Reactive Power | 1.0 Class |
| Communication | |
| Bus Type | RS 485 |
| Communication Protocols | Modbus RTU |
| Baud | 2400 bps / 4800 bps / 9600 bps / 19200 bps / 38400 bps |
| Address range | 1 – 247 |
| Communication Distance | 1000 m |
| Parity | Even / Odd / None (default) |
| Data Bit | 8 |
| Stop Bit | 1 |
| Ambient Conditions | |
| Operating Temperature | -25 C – +55 C |
| Storage Temperature | -40 C – +70 C |
| Operating Humidity | <90% RH. Non-condensing, non-corrosive gas locations |
| Storage Humidity | <95% RH. Non-condensing, non-corrosive gas locations |
| Height above seal level | <2000m |
| Installation Category | |
| Installation Category | CATIII |
| Pressure Resistance | AC withstand voltage 4KV / 1 min Pulse withstand voltage 6kV – 1.2uS waveform |
| Protection Class | IP 51 (Interior) |
| Insulation Class | II |
| Average trouble-free operation time | >50000h |
